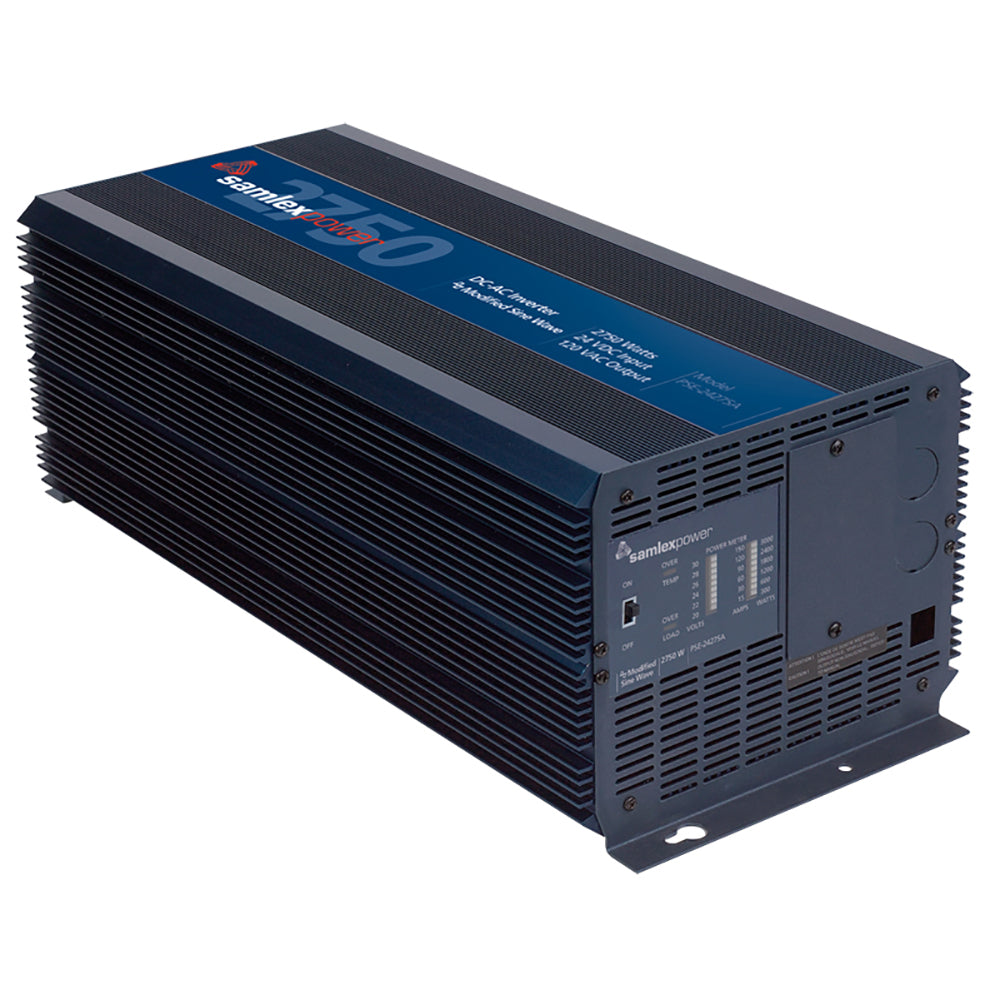

2750W Modified Sine Wave Inverter - 24V

PSE Series

This high efficiency modified sine-wave DC-AC inverter converts 24 Volts DC (Nominal) to 2750 watts of AC power at 120 Volts, 60 Hz. The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection (NEMA 5-15R receptacles with 15 Amp breaker optional accessory). Features include overload, over-temperature, low input and high input voltage protection. The front-end LED display indicates battery voltage and output power levels.

Features:

• High efficiency PWM design
• LED bar graphs indicate input voltage, input current and output power
• Temperature controlled cooling fan
• Low input voltage warning alarm
• Optional remote operation with Samlex Model RC-15 remote control (sold separately)
• Protections: high/low DC input voltage, over temperature and over load shut down
• High output power surge

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2750 Watts
• Surge: 4500 Watts
• Outlets: 1
• Fuse: 15A x 12
• Remote Control: RC-15
• Weight: 16.2 (lbs)
• Weight: 7.35 (kg)
• Dimensions: 8.07 x 19.49 x 6.3 (in)
• Dimensions: 205 x 495 x 160 (mm)
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers, monitors, fax machines
• Tools and appliances
